Build or Buy Trusses??

by Steve
(Lebanon, OH)


I'm planning on building a shed on a 22x12 slab. The shed itself will be 16x12 with a 6ft covered porch. I'm wondering about the trusses, should I buy or build them?

I would like to get as much storage as I can, so if I bought them I would probably buy attic trusses. On the other hand, I've seen some smaller sheds built with trusses where there wasn't a board running from eave to eave, which definitely opens up the space inside. Although I'm sure these aren't as strong as a truss with a full cross-member running from eave to eave.

What are your thoughts on this?


Return to Shed Roof hub page

Comments for Build or Buy Trusses??

Click here to add your own comments

Apr 30, 2009
 HERES WHAT I DO
by: Anonymous

16' wide and under I cut my own rafters, so above the 16' I go with the truss. I think it's commonly understood that trusses will lessen the labour time on the project.Also when purchased they are stamped and perfect as well as stronger than a rafter
But, I'm not here to avoid the? Here in the US.there are building codes. And this also factors into the way garages go up.
In your situation, I would build rafters and put a collar tie on them all, as I assume 12' is the width.This will give you that open space that's desired. Definitely, use a ridge board.
I have read and completely understand the book that comes with a "speed square" If you need help with angles and numbers
SHEDGUY

BTW-post a pic or link here when completed
WE LOVE SHEDS


Related posts:
Apr 30, 2009
 Follow up's
by: Steve

So, the ridge board would run the length of the roof, with the rafters tieing into it on either side? Then a collar tie would run between each set of rafters? How close to the peak can I put the collar tie for a 12' roof? Do I need to use 2x6's for the rafters? 12" O.C. or 24" O.C.?
Thanks!
Apr 30, 2009
 your welcome
by: ShedGuy

Correct on the ridge running the lenght of the building,or beyond if there will be a gable overhang on both ends.
Your collar tie adds strength to the rafters and simulates a truss.depending on the roof pitch.Just make the collars ties as long a you can while still keeping your space,Also they make for good storage of items up top.
Definetly 2x6 material on a wide building.This is your shed after all and the cost is minimal compared to the quality roof you will get.24" oc is sufficient and I offer a 16"oc upgrade to meet town codes
You have the pics here by the weekend right??
DOUG
Apr 30, 2009
 It might be awhile!
by: Anonymous

Shedguy,
I'm still in the planning phases right now, so pics by this weekend is a stretch! I'll be sure to post pics when I get into everything. Thanks again.
Jun 29, 2009
 rafters
by: Steve

So I'm getting closer now. The slab has been poured/finished. Plan on building the shed next week. I'm going to build the rafters out of 2x6's, 6/12 pitch. The span will be 11'8" (4" room for brick veneer on front ... yes, I said brick). I know this is a broad question, but how do I cut my rafters? Any good site that tells you how to use rafter tables/speed square, etc? Also, what goes up first? Should I cut all the rafters at one time? When do I tie them to the ridge beam and how do I hold it in place? How do I do the 1' overhang on each end?
Jun 29, 2009
 a good link
by: Anonymous

http://www.wendrickstruss.com/Calculator/index.asp

this should assist you.

email me at shedguy@shedguy.ws and I can assist more
DOUGLAS
Jul 13, 2009
 posting a pic?
by: Steve

how do I post a pic to this discussion? I've got a few I'd like to share.
Jul 13, 2009
 shed roof pictures
by: John Admin

Hi Steve,

Here is a selection of the photos you sent in. I would like to do a little feature on this and use all the photos you sent.

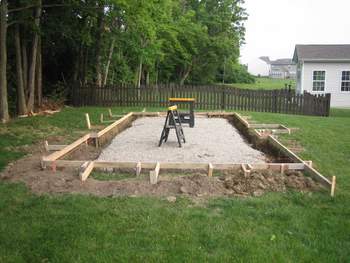

The foundation dug and ready for concrete

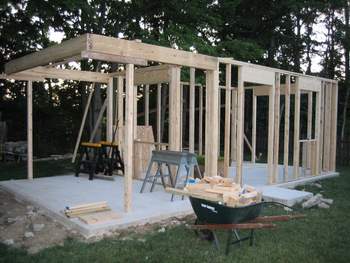

The beginning of the timber framework

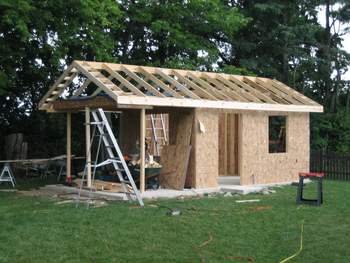

Sheathing in position and roof framework

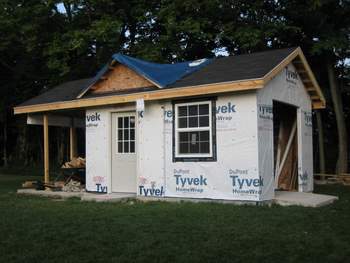

Approaching completion - siding and trim to be added soon!


Regards

John
Jul 21, 2009
 Ridge Board
by: Kelly

Here is a suggestion. This was my first attempt at building a large project. My shed, 12x16 is near completion did doors this past weekend and working on trim.

My suggestion for supporting your ridge beam is to nail a 2x6 at each end of your shed wall in a verticle position. Cut a notch in the board so that your ridge board will fit in it. Make sure the 2x6 is supported. Then believe it or not you can put up your ridge board by yourself. I did! It will stay there during a storm.

Oct 01, 2009
 Nice build
by: Anonymous

Couple of great sites for getting the angles you need.
http://www.blocklayer.com/Roof/GableEng.aspx
http://www.easyrafters.com/
Aug 09, 2015
 more pictures
by: Guerin

I know this thread is a bit old but I took a liking to the shed you built and decided I'm going to build mine pretty identical to it.

Was wondering if you had any additional pictures of the build process that you could email to me.

If you would be able to, let me know by replying to this thread.
