What would be your ideal shed location?

by John Liehe
(Northern Utah, USA)

For some people it would be next to a beautiful beach. Others would prefer to have a mountain cabin with crystal clear air and beautiful views.

For John Liehe it was at the bottom of his garden, located in Northern Utah, USA. The unusual thing about John's garden is that it has a beautiful trout stream running past the bottom of it.

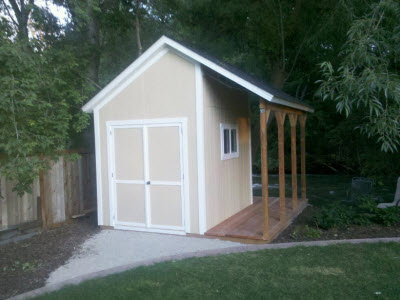

riverside shed
The finished shed

John developed his shed design to make the most of this location



John's design has a fairly traditional (on the outside) gable roof design but he has inset the walls on two sides to make the most of the view over the garden (and that trout stream at the back). The inset walls allowed the construction of a redwood deck to the side and rear of the shed. This design means that the shed combines the functionality of storage as well as providing outside shelter for fishing and enjoying the occasional evening cocktail whilst admiring the beauty of the surroundings.

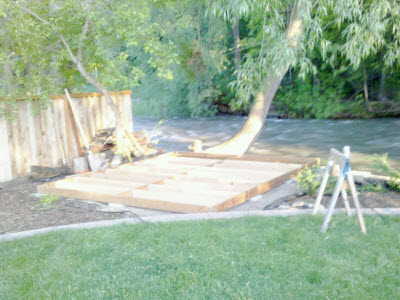

shed floor
Before work could start work on the shed floor John removed a large earth berm

How to make the most of available materials



The materials for the shed roof are the most unusual part of this project. John works for a steel supplier and saw that there were a number of steel 'lattice joists' in the scrap bin. Rather than let them go to waste he re-purposed them by welding them into an 'inverted V' shape and used them to form the roof.

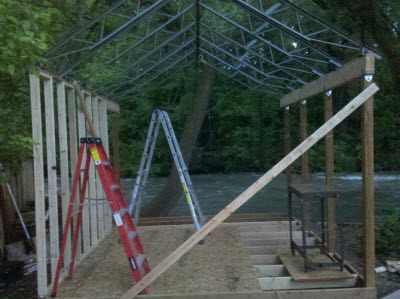

shed roof structure
The unusual shed roof structure braced before any other structure was added


One side of the roof is supported on a fairly traditional looking timber stud wall, while the other is supported on a series of four posts along the deck side.

The rest of the shed is of a fairly traditional construction with a timber floor and timber stud walls. Despite all of this there were a few tricky details to think through.

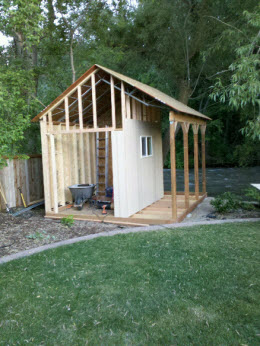

shed carcass
The infill walls were fairly traditional timber stud construction

One of the biggest problems John found was working by himself



Without a construction buddy to talk things through with John told me that he found himself 'over-thinking' a lot of the details. In particular overcoming the tricky detail of designing around the joist tails at the eaves of the building was a particular problem that required a lot of thought.

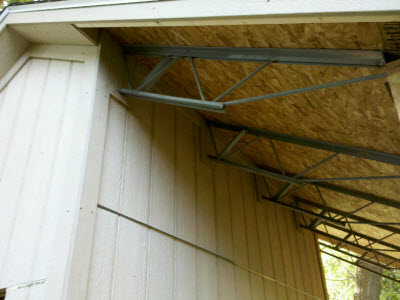

shed eaves
A tricky eaves detail to mull over


The whole project took about 5 weeks from start to finish



A good section of this was the ground works. There was a large earth 'berm' on the site of the shed that needed to be removed to form a flat site.

Ground works to form the shed base is an area that is often overlooked in many shed projects and can take a big chunk of the project time.


Now the project is finished John can enjoy the fruit of his labours



I had a report the other day that John had caught a couple of brown trout from an area just behind the shed.

How about that for an ideal location?

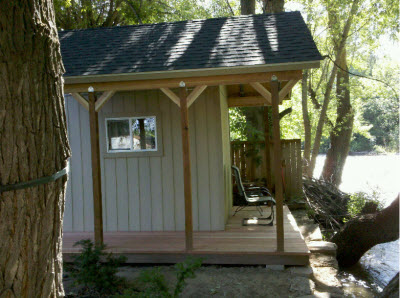

shed location
A great spot for a beer or to catch a fish

What would be your ideal shed location?

Tell us in the comments box below.......

Comments for What would be your ideal shed location?

Average Rating starstarstarstarstar

Click here to add your own comments

Sep 10, 2011
Rating
starstarstarstarstar
NATURE'S BEST
by: Anonymous

Great looking shed. What will happen when the stream rises and washes it away? Nature has a way of giving you a good swift kick in the rear when buildings of this sort are put in the "ideal" place. Enjoy it while you can. Nature always has the last laugh.


Sep 11, 2011
Rating
starstarstarstarstar
Another couple of examples
by: JohnC

Hi thanks for joining in. I shared your concern about the river rising and washing the shed away. I was a bit concerned when I heard that a berm had been removed, but John (the shed owner) confirmed that there is a retaining wall that we can't see that protects the embankment and the shed is in fact quite well protected.

I have another couple of examples here of sheds that could be in ideal locations.

The first one from one of our shed competition looks spectacular and probably couldn't be built.

The second was built in 1922 and was the highest structure in North America at the time. Although it is no longer the highest, it is still very much in use today.

impractical shed location
Natures shed - conceptual design for Shed Design Competition

abbott pass hut
The Abbott Pass Hut - Located on the border between the Banff National Park and Yoho National Park in the Canadian Rockies


Sep 11, 2011
Rating
starstarstarstarstar
Canadian Hut
by: Sarah

Love the Abbott Pass Hut - would be awesome to go there one day!

Sep 12, 2011
Rating
starstarstarstarstar
Death Gulch
by: Anonymous

It's best to climb up there from the other side (Lake O'Hara) as the icefall this side is known as Death Gulch.

It is the place where the first known mountaineering fatality in North America occurred.

Apparently there is a steady stream of rock and ice debris falling down there, despite how beautiful it looks.

John

Let's do that hike on our next trip!

Sep 16, 2011
Rating
starstarstarstarstar
Working alone
by: Roy C , England

Very nice shed ! I too am experiencing working alone building a lean to along side my house and over my drive.

Propping timber apex ledgers up with 2" x 2" did solve some issues. But certainly being on your own I do over think things, worry far too much about vents etc and over engineer joints.

But thats just me !

Roy, UK

Sep 21, 2011
Rating
starstarstarstarstar
Builder's reply to comments
by: John L

Thanks for the positive comments!

I did have some concerns about the river rising, This was actually a record year for the amount of snow pack, but the 100 year flood marker was still below the elevation of the shed, and the water level never really got close enough for concern. If the river ever does flood bad enough to wash the shed away, the shed will be the least of my concerns.

I did have some help setting the joist and lifting the walls, but most of the work was on my own. Like John mentioned, the worst part was not having someone around to bounce ideas off of. Most of the work was pretty easy in the end, but there was definitely too much time standing there staring at it trying to think how to solve a problem.

Some advice: when you do your material take-off, make sure you buy a few extra of everything, The cost of the extra material is worth the time saved by going back to the lumber store when you cut something wrong. (If you are like me, it happens often.)Good luck on your own shed, it is very rewarding building it yourself.
